4G/VoLTE Gateways for Lift Alarm

Our 4G Gateway with VoLTE provides the solution!

Our 4G gateways reliably connect lift alarm devices to alarm call centres via the 4G mobile network – or to alternative call destinations as required.

Future-proof with Voice over LTE

  • By using 4G technology and voice transmission via Voice over LTE (VoLTE), you get a future-proof solution.
  • Our gateways are the first choice for new installations or modernisation projects.

Gateway IPG141

Gateway IPG141

Features IPG 141

  • Up to 9 alarm telephones (NRT) can be connected.
  • Connection option for a machine room telephone
  • Provision of supply voltage for an alarm call device
  • Status query and control commands via SMS
  • Remote firmware updates possible
  • Integrated alarm power supply with monitoring according to EN 81-28 (remote lift alarm)
  • Switching output for error messages
  • Status display via LEDs
  • Configurable via web interface or PRG interface
  • Router function: Transmission of lift control and lift warden data via built-in Ethernet interface

Get in touch

Router Function for Data Transmission!

Use the IP Gateway for connecting lift components!

Take advantage of the IP Gateway connectivity for lift components!

Our gateway for lift alarm call systems offers much more than just reliable alarm communication. Through the existing mobile network connection, data from the lift  control system and other components can now be transmitted securely and efficiently – without the need for additional SIM cards, modems, or gateways!

The IP Gateway features an integrated Ethernet interface for connecting components. Compatible devices can easily be configured to establish an online connection via the router function of the IPG.

Good to know:
The included SiwalTec SIM card provides an inclusive data volume of 100 MB per month for the router function. This allows you to benefit from expanded functionality – without additional mobile network costs.



Versatile application options

  • Transmit status and diagnostic data from the lift control system
  • Remote maintenance of lift components via the existing mobile network connection
  • Secure data transmission without additional mobile hardware

In addition to online connectivity, the Ethernet interface of the IPG can also be used for simple device configuration via web interface.

Make the most of your gateway – more functionality, same connection, no extra cost!

Get in touch

Advantages of IP Gateways for Lift Alarm Calls

  • Connecting alarm call devices to the mobile network
  • Interface for machine room intercom communication
  • Gateways with connection to lift control systems
Feature description
IPG 141
Voice transmission via Voice over LTE (VoLTE) alarm call devices
Data transmission via mobile network 4G, 3G and 2G
Analog a/b telephone interface for alarm call devices
XT bus system for remote access to alarm call devices via IP protocol
Programmable alarm output
Analog a/b telephone interface for machine room telephone
Ethernet interface
Programmable outputs yes, 1
Buffered power output

IP gateway accessories

Image Item

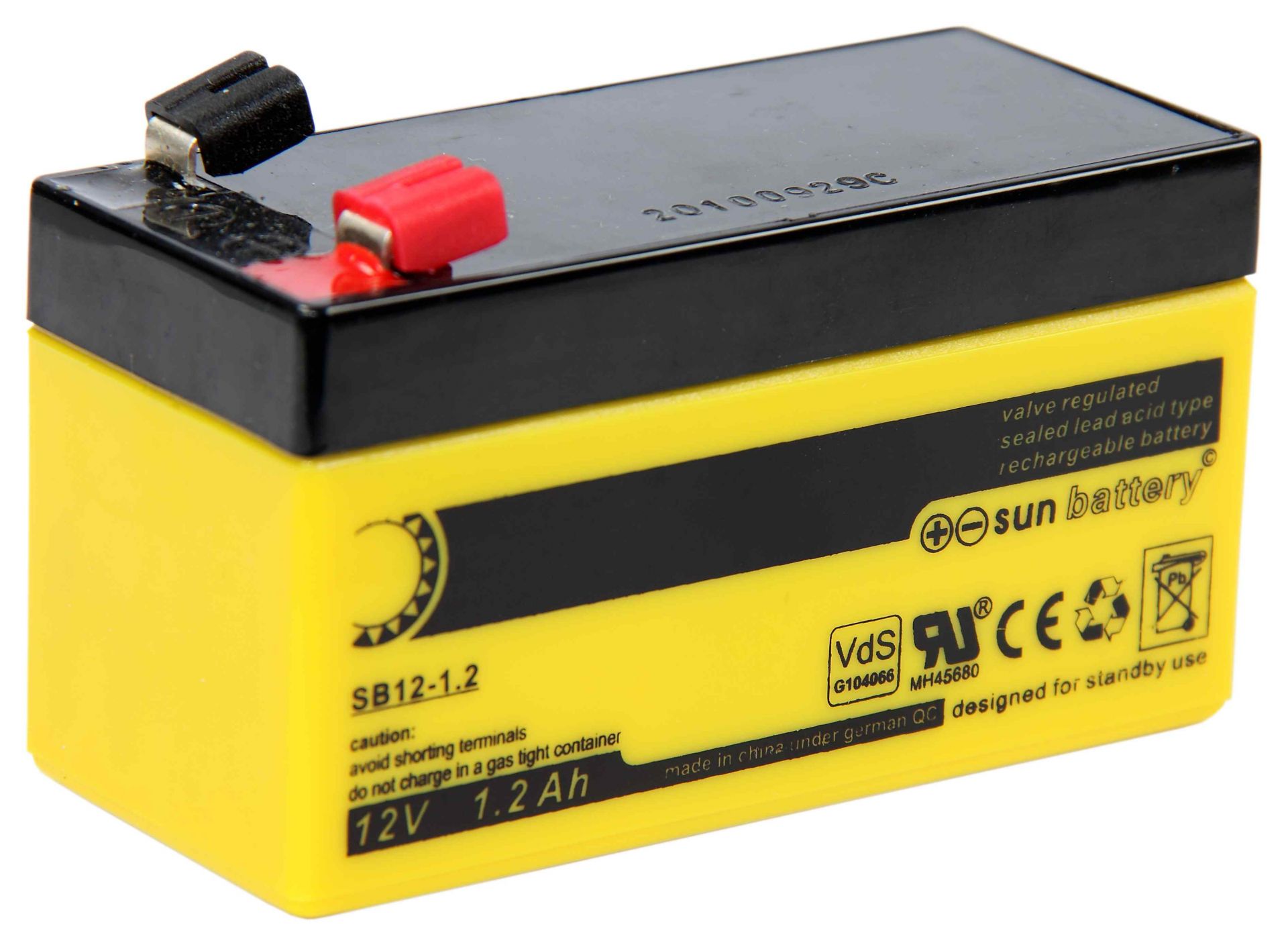

Battery 12V 1.2Ah

Battery 12V/1.2Ah 97x43x53mm

Rechargeable battery for emergency power supply – Art. 601478

This 12 V, 1.2 Ah sealed lead-acid battery is used as an energy storage for backup power in many Telegärtner Elektronik devices, such as the IPG 141 gateway. Its compact housing and maintenance-free design make it suitable for long-term use in control cabinets and emergency call systems.

Included in the delivery scope of the IPG 141 gateway
LAT1 LTE antenna

Lat1 LTE antenna GS-ANT-86-100 SMA tilting joint

Indoor LTE stub antenna with SMA male connector – Art. 601335

LAT1 is a black LTE stub antenna with SMA male connector and a tilting joint for direct mounting on gateways or routers. It is intended for indoor use and covers the LTE band so that IPG 141 units and similar devices can establish a stable mobile network connection without additional cabling effort.

Included in the delivery scope of the IPG 141 gateway
LAT2 LTE rod antenna

Lat2 LTE rod antenna with angle SMA male weatherproof 5 m

Outdoor wall-mount LTE antenna with 5 m low-loss cable – Art. 601336

The LAT2 LTE rod antenna is designed for wall mounting with a metal angle bracket. A weatherproof SMA male connector and a 5 m RG58 low-loss cable allow the antenna to be installed outdoors while the connected gateway remains inside. It supports 2G, 3G and 4G operation for reliable mobile communication.
10 m antenna extension cable

Extension 10 m lat1.2 SMA-F/SMA-M low loss 240

Ten-meter low-loss antenna extension cable – Art. 601712

The 10 m extension cable with SMA-F to SMA-M connectors is based on low loss 240 coaxial cable. It allows antennas such as LAT1 or LAT2 to be positioned at an optimal reception point while the gateway is mounted at a different location inside the building.
5 m antenna extension cable

Extension 5 m lat1.2 SMA-F/SMA-M low loss 240

Five-meter low-loss antenna extension cable – Art. 601711

This 5 m low loss 240 extension cable with SMA-F and SMA-M connectors serves the same purpose as the 10 m version but for shorter distances. It provides flexibility when the antenna must be moved away from the device to achieve better mobile reception or to meet installation constraints.
