Firefighter Intercom Systems

Firefighter intercom systems provide voice communication for firefighter lifts with special requirements. Various loudspeaker and intercom configurations are available for the individual communication points – as hands-free stations, with handset, or with talk button, depending on the needs of the installation.

Firefighter Intercom Solutions

Telegärtner Elektronik‘s fire intercom systems provide a reliable communication connection for firefighter lifts with special requirements. They comply with the EN 81-72 standard and ensure immediate communication after the power supply is connected.

Main functions

  • Immediate talk readiness
    After the power supply to the central unit is connected, e.g., via a firefighter key switch.
  • Flexible configuration
    Up to three hands-free units and, optionally, a telephone via a telephone adapter are possible.
  • Adaptable control
    Optionally configurable control inputs for the talk/listen/hands-free selector switch.

Benefits

  • Ready indicator
    Output for lamp or LED with series resistor
  • Multilingual menu navigation
    Configuration via PRG 100 programming device
  • Standard compliance
    Complies with the requirements of EN 81 72 for firefighter lifts

Features

  • Up to three hands free stations and an optional telephone via telephone adapter
  • Immediate speech readiness after activation of the central unit’s power supply for example via fire service key switch
  • Muting option via control input when the lift is located at the main access level to avoid acoustic feedback
  • Optional control inputs for selecting talk, listen or hands free modes
  • Output for readiness indication suitable for lamp or LED with series resistor
  • Configuration via PRG 100 programming device
  • Multilingual menu navigation
  • Compliance with EN 81 72 for firefighter lifts
Central Unit FSP 100

The central unit supplies power to the intercom stations and serves as the communication hub. It is installed in the machine room and the intercom stations are connected from there in a star configuration using a four wire shielded cable.
The unit provides connections for three intercom stations. It is powered by 230 V and is typically activated via a central fire service key switch.

Intercom Electronics FSP 100

For all hands free stations of a firefighter intercom system an intercom electronics module is required.
In addition to the basic unit there are variants with an additional loudspeaker, microphone and call button.

Telephone Splitter Versions A and B

If a standard telephone is required instead of a hands free station the intercom electronics module must be replaced with Telephone Splitter A.
If a telephone is to be used in parallel with an intercom electronics module this is achieved using Telephone Splitter B.

Firefighter intercom accessories

Image Item
Speaker SL87WPM 4 ohm

Speaker SL87WPM 4 ohm

Loudspeaker for alarm and intercom applications – Art. 601622

This 4-ohm speaker is suitable for elevator emergency communication systems and other intercom environments. It provides clear and reliable voice reproduction, making it ideal for integration into alarm devices or machine-room communication panels. The unit is moisture-protected with an IP65 front rating, ensuring dependable performance in demanding or humid installation areas.

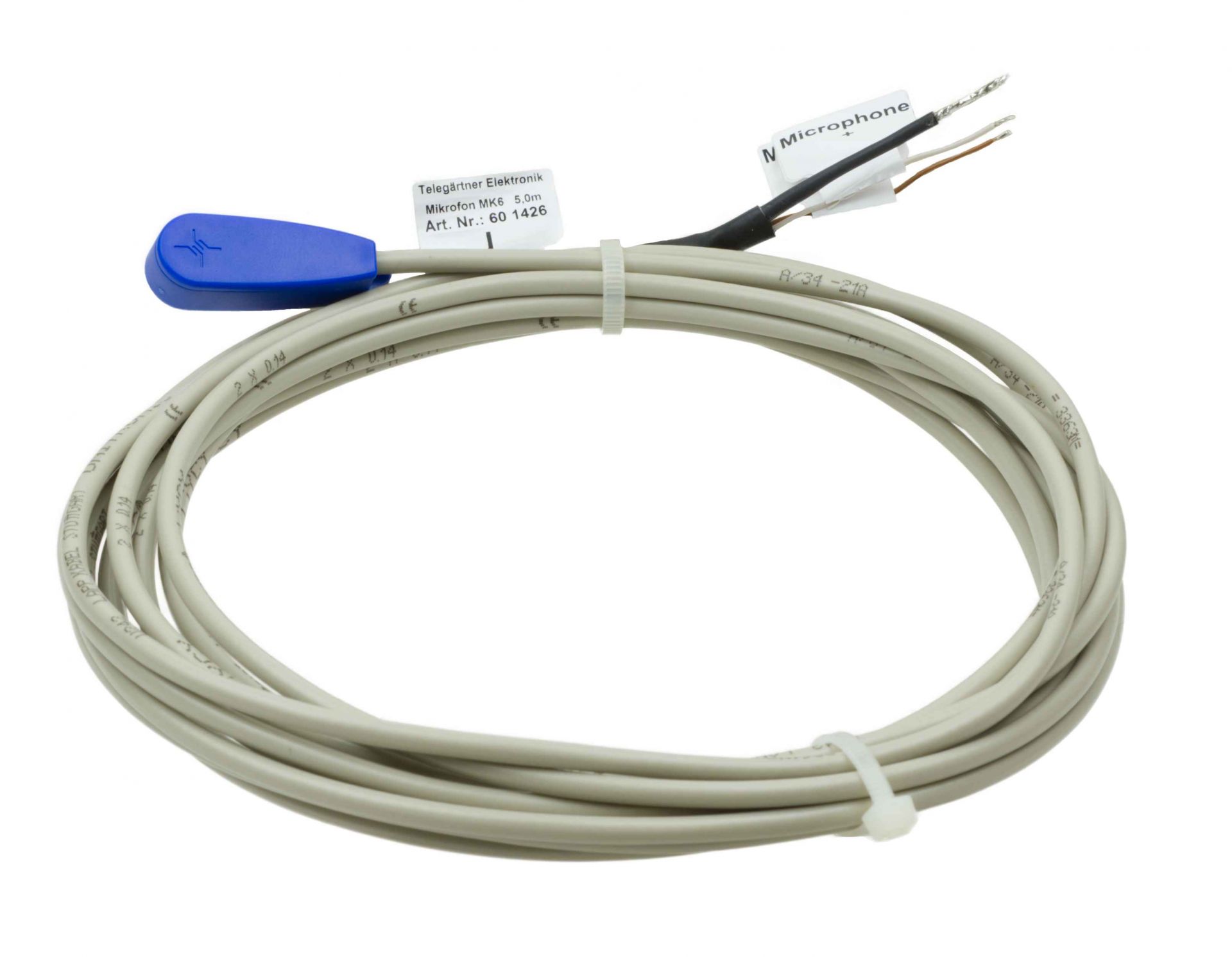

MK6 microphone 5.0 m open

Mk6 microphone 5.0 m open

Microphone with adhesive fixing and 5 m cable – Art. 601426

The MK6 microphone is designed for installation in elevator cabins and emergency communication systems. Its 5-meter cable allows flexible positioning, while the adhesive fixing enables fast mounting on various surfaces. The microphone ensures high speech intelligibility, supporting reliable intercom and emergency call operation.
